Temperature-to-pulse width converter IC with PWM interface. Features a wide operating temperature range of -55°C to 125°C and a supply voltage from 3V to 5.5V. This component offers an analog voltage output of 1.24V and operates with a typical supply current of 600uA. Packaged in a compact 10-UMAX with dimensions of 3.05mm x 3.05mm x 0.95mm, it is RoHS compliant and lead-free.
PackageUMAX
Quick Jump:
Technical Specifications
Maxim MAX6691MUB+ technical specifications.
General
| Package/Case | UMAX |
| Height | 0.95mm |
| Interface | PWM |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Operating Supply Current | 600uA |
| Output Type | Voltage, Analog |
| Output Voltage | 1.24V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX6691MUB+ Datasheet
Download the complete datasheet for Maxim MAX6691MUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

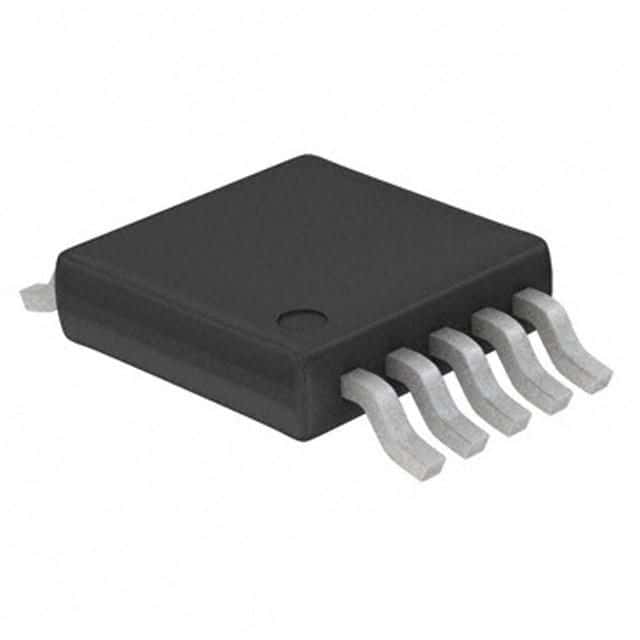

Product Images
