16-output LED driver IC with serial 4-wire interface, capable of driving up to 64 segments. Features a 4V to 5.5V input voltage range and a maximum output current of 320mA per channel. Operates with a 10MHz switch frequency and a supply current of 330mA. Packaged in a through-hole DIP-24 configuration, this RoHS compliant component offers a wide operating temperature range from -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power1.066W
Quick Jump:
Technical Specifications
Maxim MAX7219ENG+ technical specifications.
General
| Package/Case | DIP |
| Height | 4.45mm |
| High Level Output Current | -2mA |
| Interface | Serial, 4-WIRE |
| Lead Free | Lead Free |
| Length | 32.13mm |
| Low Level Output Current | 5mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.066W |
| Max Supply Current | 330mA |
| Mount | Through Hole |
| Number of Outputs | 16 |
| Number of Segments | 64 |
| Operating Supply Current | 330mA |
| Operating Supply Voltage | 5.5V |
| Output Current | 320mA |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.066W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX7219ENG+ Datasheet
Download the complete datasheet for Maxim MAX7219ENG+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

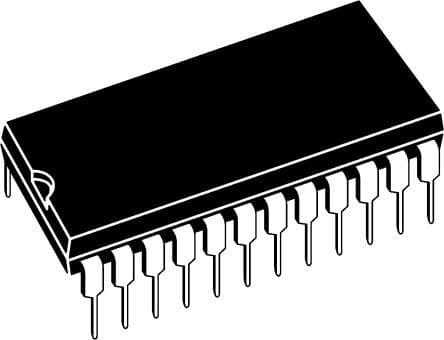

Product Images
