Positive LDO Regulator, 1A output current, 2.7V to 5.5V input voltage range, and 0.8V to 5V adjustable output voltage. Features 200mV dropout voltage at 1A, 1% accuracy, and 500µA quiescent current. This surface mount component is housed in a 16-pin TSSOP package, operating from -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Maxim MAX8869EUE33+ technical specifications.
General
| Accuracy | 1% |
| Package/Case | TSSOP |
| Dropout Voltage | 200mV |
| Height | 0.9mm |
| Input Bias Current | 2.5mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Fixed, Adjustable |
| Output Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 500uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reference Voltage | 800mV |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX8869EUE33+ Datasheet
Download the complete datasheet for Maxim MAX8869EUE33+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

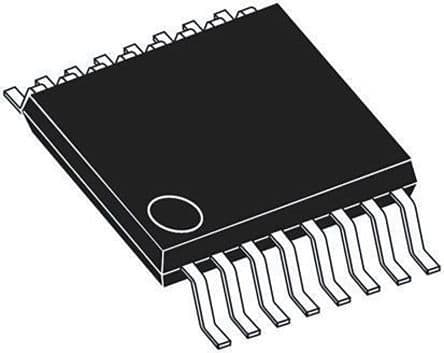

Product Images
