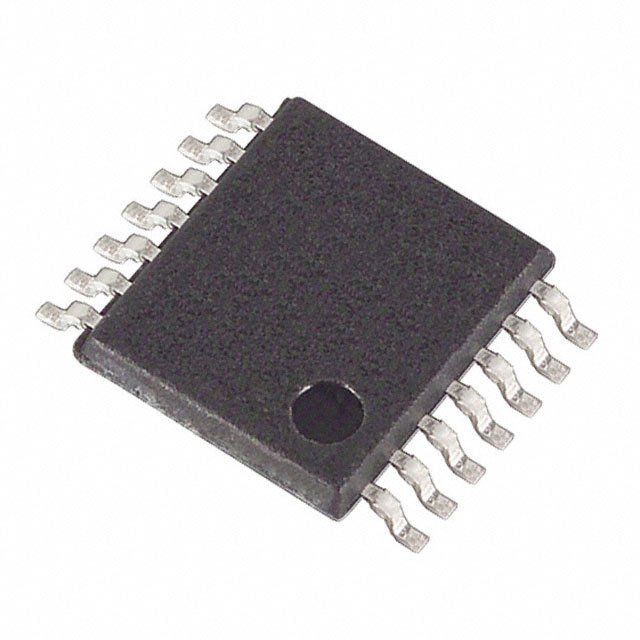

Quad comparator IC featuring push-pull, TTL output. Operates from a 1.25V to 5.5V supply range with a maximum supply current of 140µA. Offers 100dB common mode rejection and power supply rejection ratios. Input offset voltage is 1mV with 4mV hysteresis and 8nA input bias current. Packaged in a 14-TSSOP for surface mounting, this RoHS compliant component has a propagation delay of 228ns and an operating temperature range of -40°C to 125°C.
PackageTSSOP
Current140uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9034AUD+ technical specifications.
General
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 100dB |
| Height | 0.95mm |
| Hysteresis | 4mV |
| Input Bias Current | 8nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Dual Supply Voltage | 2.75V |
| Min Dual Supply Voltage | 1.25V |
| Max Input Current | 8nA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 727mW |
| Max Supply Current | 140uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Type | PUSH-PULL, TTL |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Propagation Delay | 228ns |
| Quiescent Current | 55uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 188ns |
| RoHS Compliant | Yes |
| Supply Current | 140uA |
| Type | General Purpose |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
