High-speed analogue comparator with rail-to-rail output, featuring a 40ns propagation delay and 1.5mV hysteresis. Operates from a 2.7V to 5.5V supply voltage with a maximum supply current of 300µA. This single-channel IC offers a 2mV input offset voltage and 320nA input bias current. Packaged in a 5-pin SOT-23-5 for surface mounting, it boasts a wide operating temperature range of -40°C to 85°C.
PackageSOT-23-5
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9140EUK+T technical specifications.
General
| Package/Case | SOT-23-5 |
| Common Mode Rejection Ratio | 81.94dB |
| Height | 1.3mm |
| Hysteresis | 1.5mV |
| Input Bias Current | 320nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Current | 320nA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 571mW |
| Max Supply Current | 300uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Type | TTL, PUSH-PULL |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 81.94dB |
| Propagation Delay | 40ns |
| Quiescent Current | 300uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 40ns |
| RoHS Compliant | Yes |
| Supply Current | 300uA |
| Type | General Purpose |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9140EUK+T Datasheet
Download the complete datasheet for Maxim MAX9140EUK+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

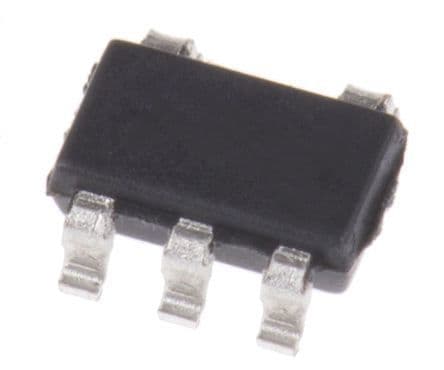

Product Images
