Dual high-speed analog comparator IC featuring a 500 ps response time and 2 channels. Operates from a 1V to 5V supply voltage with a maximum supply current of 12mA. Offers 65dB Common Mode Rejection Ratio and 65dB Power Supply Rejection Ratio. Packaged in a 20-pin TSSOP surface-mount configuration, this RoHS compliant component has a maximum power dissipation of 879mW.
PackageTSSOP
Current12mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9600EUP+ technical specifications.
General
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 65dB |
| Height | 0.95mm |
| Hysteresis | 30mV |
| Input Bias Current | 20uA |
| Input Offset Voltage (Vos) | 9mV |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Max Input Current | 6uA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 879mW |
| Max Supply Current | 12mA |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 50mA |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Power Supply | 5V |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Propagation Delay | 0.5ns |
| Quiescent Current | 24mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 500ps |
| RoHS Compliant | Yes |
| Supply Current | 12mA |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9600EUP+ Datasheet
Download the complete datasheet for Maxim MAX9600EUP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

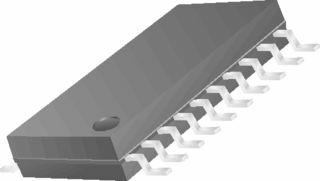

Product Images
