Technical Specifications
Maxim MAX9995ETX+T technical specifications.
General
Frequency
2.2GHz
Gain
6.1dB
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.1W
Noise Figure
9.9dB
Nominal Supply Current
332mA
Operating Supply Current
380mA
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
MAX9995
Thickness
750um
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX9995ETX+T Datasheet
Download the complete datasheet for Maxim MAX9995ETX+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

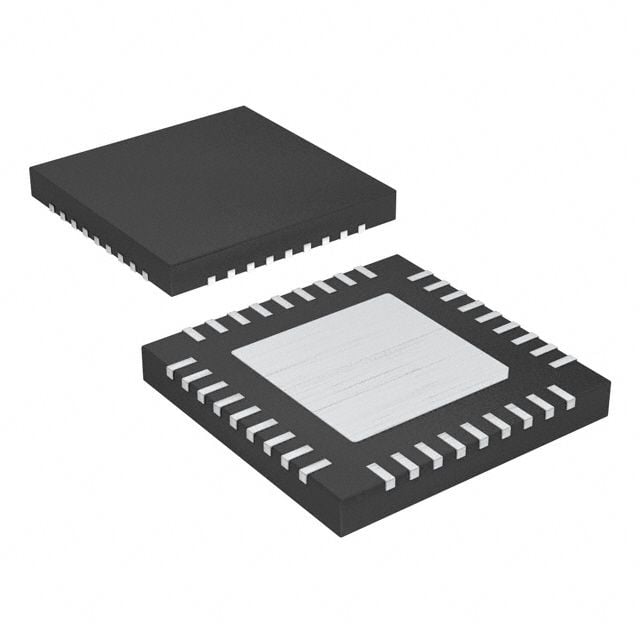

Product Images
