The MAXQ2000-QBX+ is a 64KB FLASH microcontroller with a 16-bit data bus width and support for SPI, UART, and USART interfaces. It operates at a maximum frequency of 20MHz and has a memory size of 64KB. The device is RoHS compliant and has a packaging option of rail/tube. It features a watchdog timer, power-on reset, pulse-width modulation, and liquid crystal display capabilities. The microcontroller operates within a temperature range of -40°C to 85°C.
Frequency20MHz
Quick Jump:
Technical Specifications
Maxim MAXQ2000-QBX+ technical specifications.
General
| Data Bus Width | 16b |
| Interface | SPI, UART, USART, 1-WIRE |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Number of I/Os | 50 |
| Number of Programmable I/O | 50 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, LCD |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | MAXQ® |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAXQ2000-QBX+ Datasheet
Download the complete datasheet for Maxim MAXQ2000-QBX+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

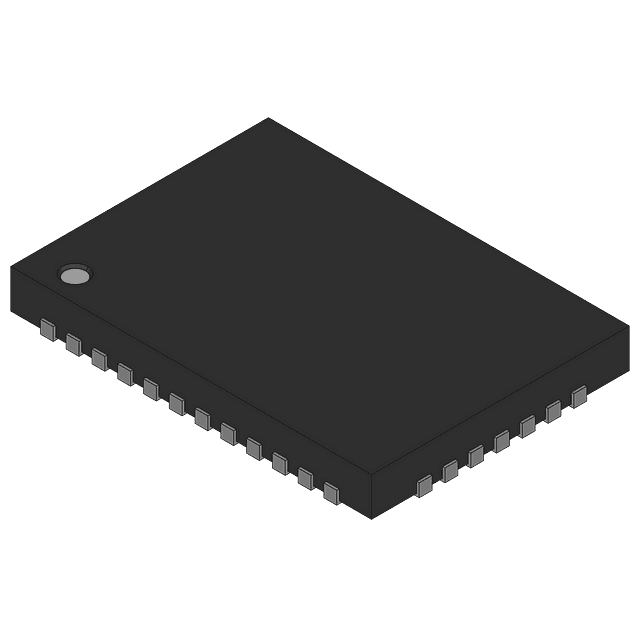

Product Images
