Technical Specifications
MCC 6A05-TP technical specifications.
General
Average Rectified Current
6A
Capacitance
150pF
Package/Case
R
Current Rating
6A
Diameter
9.1mm
Forward Current
6A
Lead Free
Lead Free
Length
9.1mm
Max Forward Surge Current (Ifsm)
400A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
50V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
50V
Max Surge Current
400A
Mount
Through Hole
Output Current
6A
Package Quantity
1
Packaging
Tape and Reel
Polarity
Standard
Reverse Voltage
50V
RoHS Compliant
Yes
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
MCC 6A05-TP Datasheet
Download the complete datasheet for MCC 6A05-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

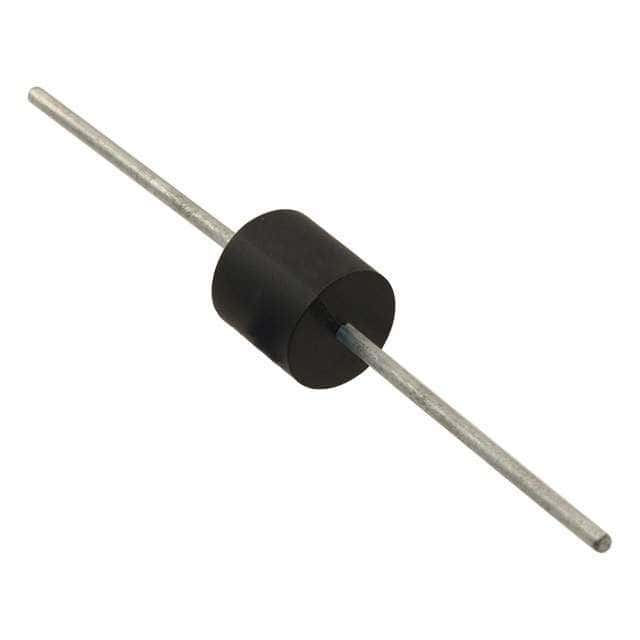

Product Images
