The BAS40V-TP is a surface mount general purpose rectifier with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a maximum reverse voltage of 40V and a maximum reverse leakage current of 200nA. The device features a reverse recovery time of 5ns and is RoHS compliant. It is available in a SOT-563 package and is suitable for use in a variety of applications.
PackageSOT-563
Capacitance5pF
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
MCC BAS40V-TP technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 5pF |
| Package/Case | SOT-563 |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 200nA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
MCC BAS40V-TP Datasheet
Download the complete datasheet for MCC BAS40V-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

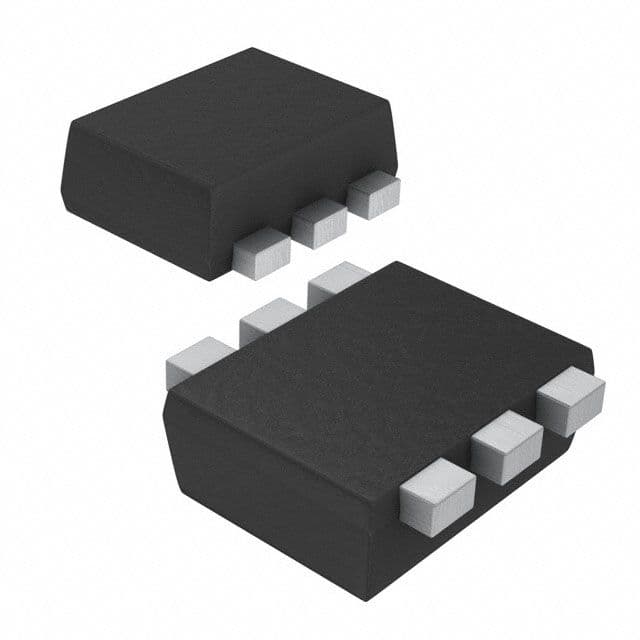

Product Images
