Schottky diode for general-purpose rectification, featuring a 30V DC rated voltage and 200mA forward current. This surface mount component offers a 5ns reverse recovery time and 7pF capacitance, with a maximum operating temperature of 125°C. It is RoHS compliant and packaged in a tape and reel for efficient assembly.
Capacitance7pF
Current Rating200mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
MCC BAT43W-TP technical specifications.
General
Average Rectified Current
200mA
Capacitance
7pF
Current Rating
200mA
Forward Current
200mA
Height
1.2mm
Lead Free
Lead Free
Length
2.85mm
Max Forward Surge Current (Ifsm)
4A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
100uA
Max Reverse Leakage Current
500nA
Max Reverse Voltage (DC)
30V
Max Surge Current
500mA
Mount
Surface Mount
Output Current
200mA
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Standard
Power Dissipation
200mW
Reverse Recovery Time
5ns
RoHS Compliant
Yes
DC Rated Voltage
30V
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
MCC BAT43W-TP Datasheet
Download the complete datasheet for MCC BAT43W-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

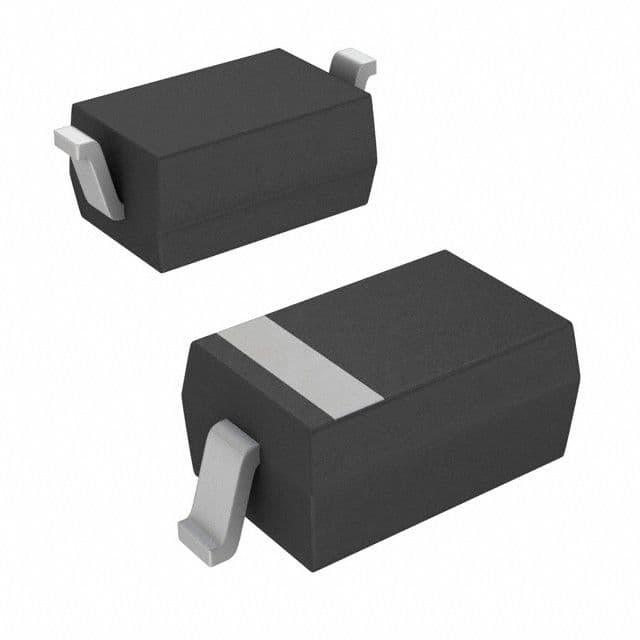

Product Images
