PackageSOT-323
Capacitance10pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC BAT54AWT-TP technical specifications.
General
Average Rectified Current
200mA
Capacitance
10pF
Package/Case
SOT-323
Current Rating
200mA
Forward Current
200mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
2uA
Max Reverse Leakage Current
2uA
Max Reverse Voltage (DC)
30V
Max Surge Current
600mA
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
600mA
Power Dissipation
200mW
Reach SVHC Compliant
Unknown
Reverse Recovery Time
5ns
RoHS Compliant
Yes
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
MCC BAT54AWT-TP Datasheet
Download the complete datasheet for MCC BAT54AWT-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

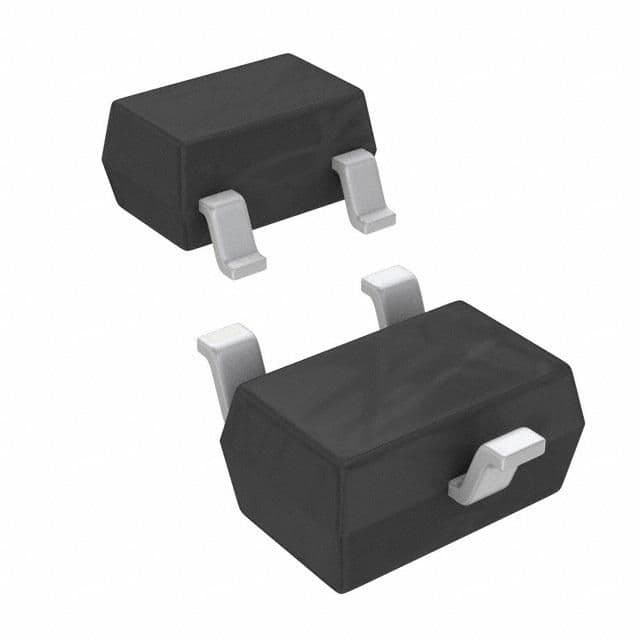

Product Images
