PackageSOT-523
Capacitance10pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC BAT54ST-TP technical specifications.
General
Average Rectified Current
200mA
Capacitance
10pF
Package/Case
SOT-523
Current Rating
200mA
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
2uA
Max Reverse Leakage Current
2uA
Max Reverse Voltage (DC)
30V
Max Surge Current
600mA
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
600mA
Power Dissipation
150mW
Radiation Hardening
No
Reverse Recovery Time
5ns
RoHS Compliant
Yes
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
MCC BAT54ST-TP Datasheet
Download the complete datasheet for MCC BAT54ST-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

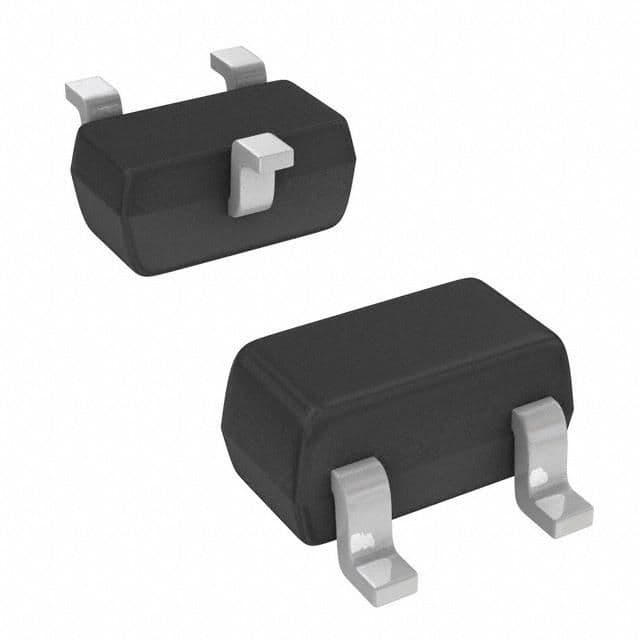

Product Images
