PackageSOT-323
Capacitance10pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC BAT54SWT-TP technical specifications.
General
Average Rectified Current
200mA
Capacitance
10pF
Package/Case
SOT-323
Current Rating
200mA
Forward Current
200mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
600mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
2uA
Max Reverse Voltage (DC)
30V
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Reverse Recovery Time
5ns
RoHS Compliant
Yes
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
MCC BAT54SWT-TP Datasheet
Download the complete datasheet for MCC BAT54SWT-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

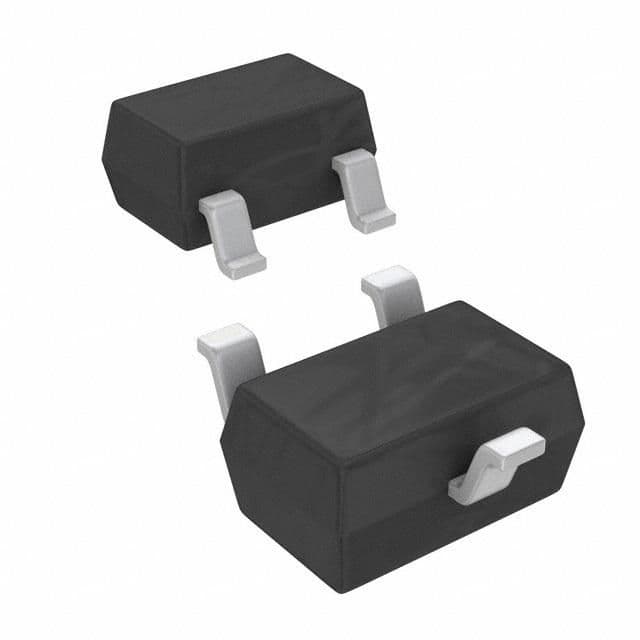

Product Images
