Technical Specifications
MCC BAT54V-TP technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 10pF |
| Package/Case | SOT-563 |
| Current Rating | 300mA |
| Forward Current | 200mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Max Reverse Voltage (DC) | 30V |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| Power Dissipation | 150mW |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BAT54V-TP Datasheet
Download the complete datasheet for MCC BAT54V-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

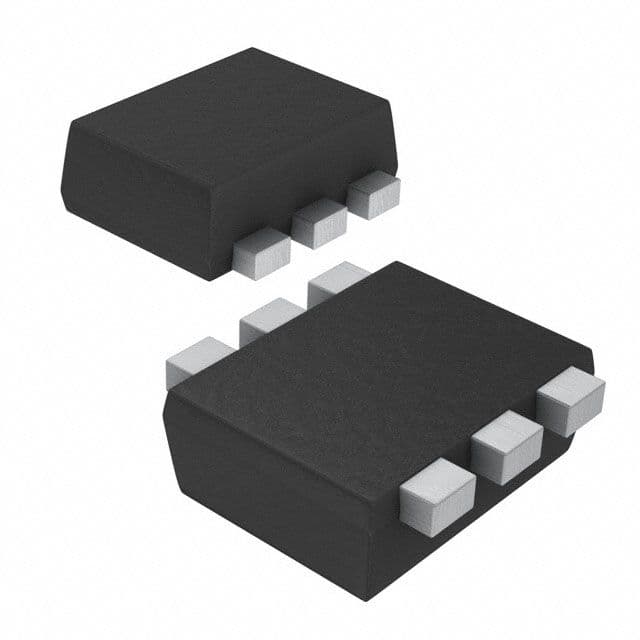

Product Images
