Schottky diode for general-purpose rectification, featuring a 30V repetitive reverse voltage and 200mA forward current. This surface mount component offers a low capacitance of 10pF and a fast 5ns reverse recovery time. It operates across a wide temperature range from -65°C to 150°C and boasts a 200mW power dissipation. The diode is RoHS compliant and packaged in tape and reel.
Capacitance10pF
Current Rating200mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
MCC BAT54WX-TP technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 10pF |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 600mA |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 600mA |
| Polarity | Standard |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BAT54WX-TP Datasheet
Download the complete datasheet for MCC BAT54WX-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

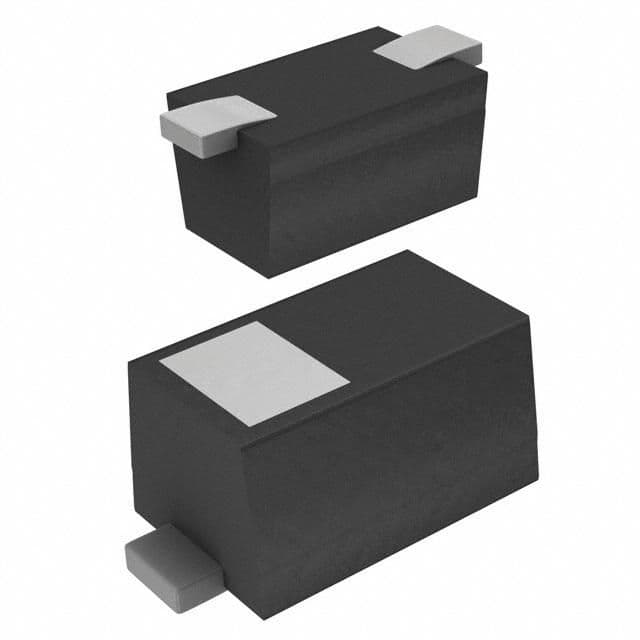

Product Images
