The BZT52C10-TP is a surface mount Zener diode with a maximum operating temperature range of -65°C to 175°C. It has a maximum power dissipation of 500mW and a zener voltage of 10V with a tolerance of 6%. The diode is lead free and RoHS compliant.
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
MCC BZT52C10-TP technical specifications.
General
| Impedance | 20R |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 200nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| DC Rated Voltage | 10V |
| Voltage Tolerance | 6% |
| Zener Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BZT52C10-TP Datasheet
Download the complete datasheet for MCC BZT52C10-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

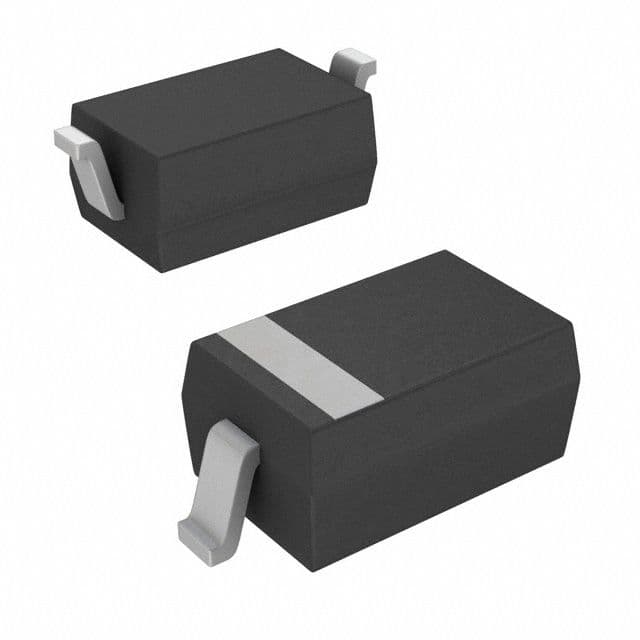

Product Images
