The MCC BZT52C16-TP is a surface mount zener diode with a DC rated voltage of 16V and a voltage tolerance of 6%. It has a maximum power dissipation of 500mW and a maximum operating temperature range of -65°C to 175°C. The diode is lead free and RoHS compliant, packaged in tape and reel quantities of 3000.
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
MCC BZT52C16-TP technical specifications.
General
| Impedance | 40R |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| DC Rated Voltage | 16V |
| Voltage Tolerance | 6% |
| Zener Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BZT52C16-TP Datasheet
Download the complete datasheet for MCC BZT52C16-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

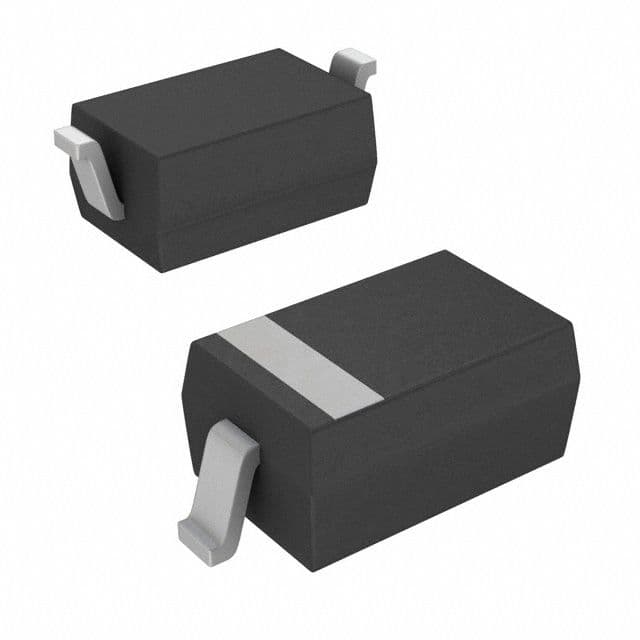

Product Images
