Technical Specifications
MCC BZT52C7V5S-TP technical specifications.
General
| Impedance | 15R |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 7.5V |
| Voltage Tolerance | 5% |
| Zener Voltage | 7.5V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BZT52C7V5S-TP Datasheet
Download the complete datasheet for MCC BZT52C7V5S-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

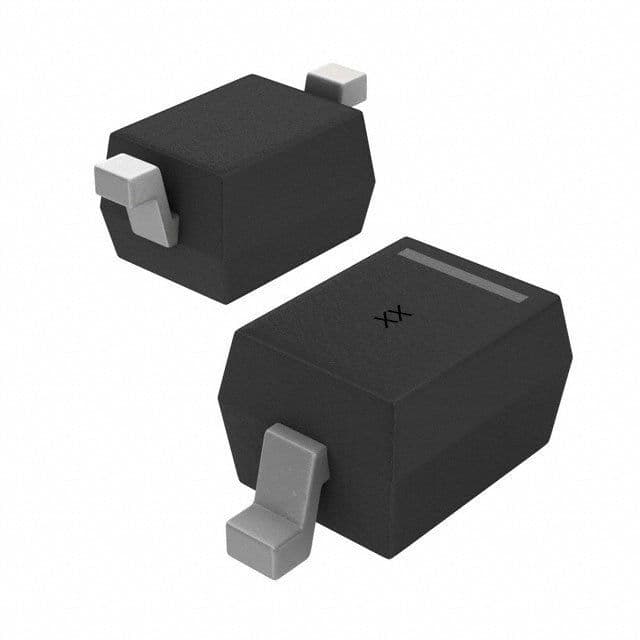

Product Images
