Technical Specifications
MCC BZV55C5V6-TP technical specifications.
General
| Impedance | 25R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 2uA |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Tolerance | 7% |
| Voltage Tolerance | 4% |
| Zener Current | 5mA |
| Zener Voltage | 5.6V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BZV55C5V6-TP Datasheet
Download the complete datasheet for MCC BZV55C5V6-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

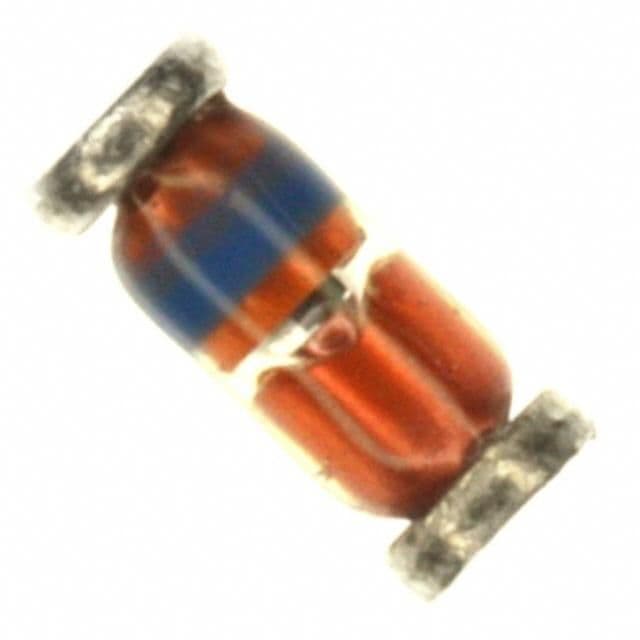

Product Images
