Technical Specifications
MCC SM4003PL-TP technical specifications.
General
| Average Rectified Current | 1A |
| Forward Current | 1A |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 200V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
MCC SM4003PL-TP Datasheet
Download the complete datasheet for MCC SM4003PL-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

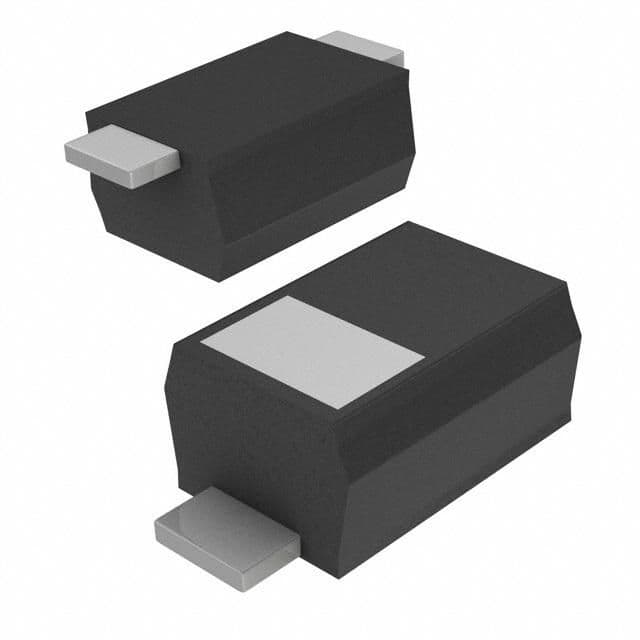

Product Images
