Technical Specifications
MCC SMAJ4746A-TP technical specifications.
General
| Package/Case | DO-214AC |
| Impedance | 20R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Power Dissipation | 1W |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 18V |
| Voltage Tolerance | 5% |
| Zener Voltage | 18V |
Compliance
| RoHS | Compliant |
Datasheet
MCC SMAJ4746A-TP Datasheet
Download the complete datasheet for MCC SMAJ4746A-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

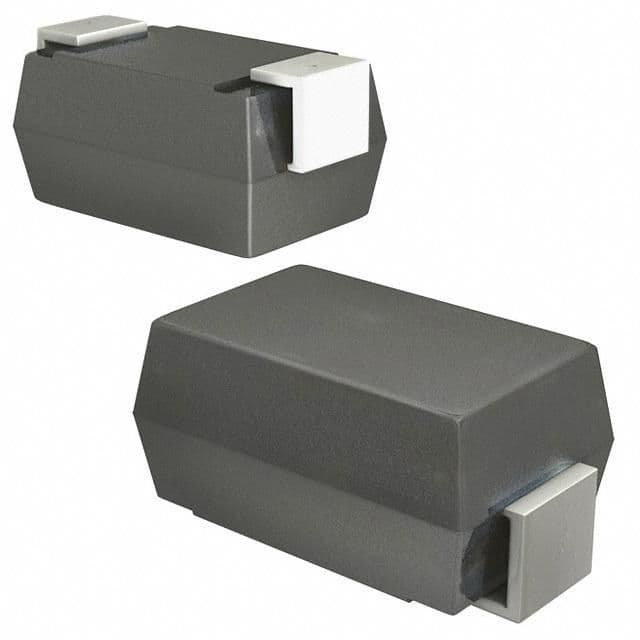

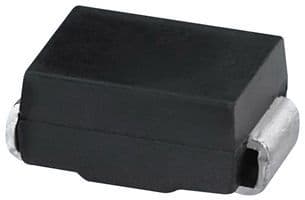

Product Images
