Bidirectional TVS Diode for surge suppression, featuring a 6V DC rated voltage and 6V reverse standoff voltage. This surface mount component offers a 10.3V clamping voltage and a 6.67V minimum reverse breakdown voltage. With a 1W maximum power dissipation and 38.8A peak pulse current capability, it is designed for robust protection. The DO-214AC package ensures compact integration, operating across a wide temperature range of -55°C to 175°C.
PackageDO-214AC
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
MCC SMAJ6.0CA-TP technical specifications.
General
Package/Case
DO-214AC
Clamping Voltage
10.3V
Diode Type
ZENER
Height
2.44mm
Lead Free
Lead Free
Leakage Current
1.6mA
Length
4.6mm
Max Breakdown Voltage
7.37V
Min Breakdown Voltage
6.67V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Max Surge Current
38.8A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
6V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
38.8A
Peak Pulse Power
400W
Polarity
Bidirectional
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
6.67V
Reverse Standoff Voltage
6V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
6V
Width
2.9mm
Compliance
RoHS
Compliant
Datasheet
MCC SMAJ6.0CA-TP Datasheet
Download the complete datasheet for MCC SMAJ6.0CA-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

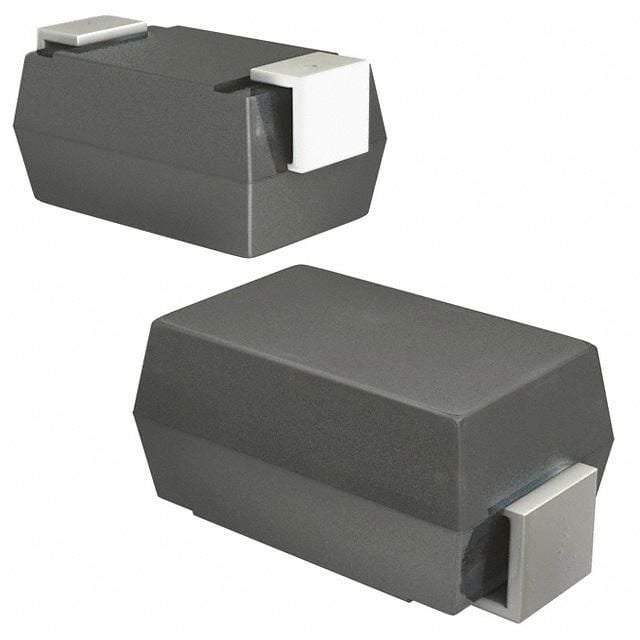

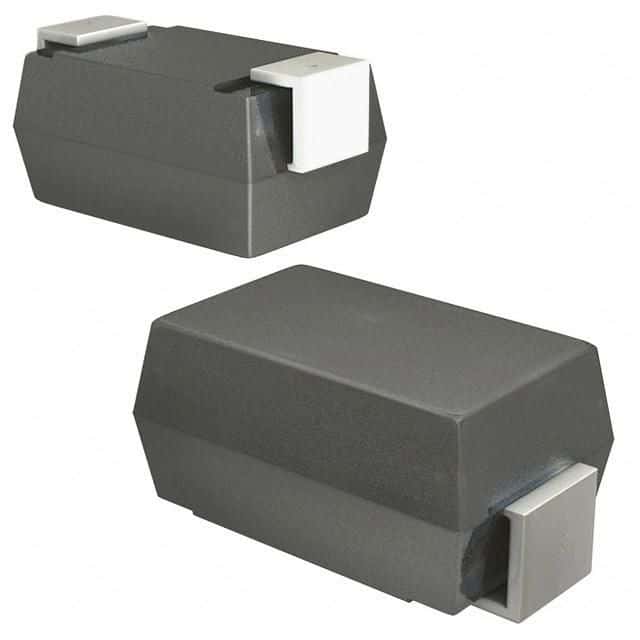

Product Images
