Unidirectional TVS Diode for surge suppression, featuring a 7.5V DC rated voltage and 8.33V minimum breakdown voltage. This component offers a 12.9V clamping voltage and a peak pulse current capability of 46.5A, with a 600W peak pulse power rating. Designed for surface mount applications in a DO-214AA package, it operates within a temperature range of -55°C to 150°C and is lead-free and RoHS compliant.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
MCC SMBJ7.5A-TP technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
12.9V
Diode Type
ZENER
Height
2.44mm
Lead Free
Lead Free
Leakage Current
100uA
Length
4.7mm
Min Breakdown Voltage
8.33V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
46.5A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
7.5V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
46.5A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
8.33V
Reverse Standoff Voltage
7.5V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
7.5V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
MCC SMBJ7.5A-TP Datasheet
Download the complete datasheet for MCC SMBJ7.5A-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

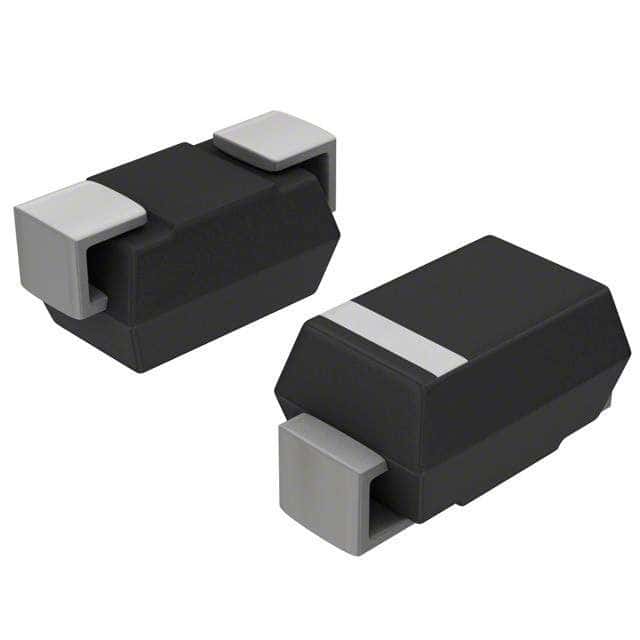

Product Images
