Technical Specifications
Mean Well AD-55B technical specifications.
General
Approvals
UL, TUV, EN
Package/Case
Module
Current - Output 1
1.8A
Current - Output 2
160mA
Efficiency
74%
Height
38mm
Lead Free
Lead Free
Length
159mm
Max Input Current
1.6A
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Power
53.92W
Mount
Panel
Number of Outputs
2
Output Current
2A
Output Power
53.92W
Output Voltage
26.5V
RoHS Compliant
Yes
Series
AD-55
Voltage - Output 1
27.6V
Voltage - Output 2
26.5V
Weight
1.1lb
Width
97mm
Compliance
RoHS
Compliant
Datasheet
Mean Well AD-55B Datasheet
Download the complete datasheet for Mean Well AD-55B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

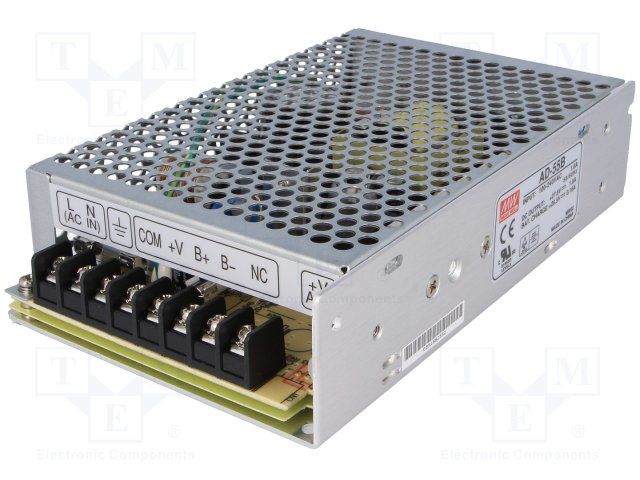

Product Images
