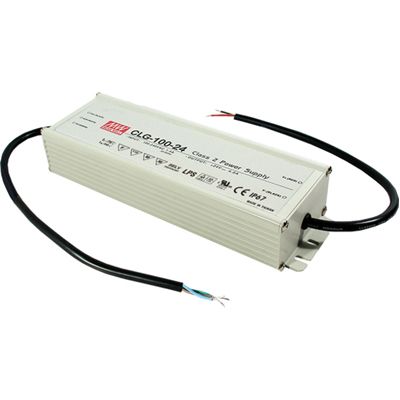

Enclosed AC-DC LED Driver, Constant Current (CC) outputting 24V at 4A, delivering up to 96W. Features a wide input voltage range of 90-295VAC, 87% efficiency, and operates from -30°C to 70°C. IP67 rated for robust environmental protection, with panel/screw mounting and cable termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mean Well CLG-100-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 4A |
| Depth | 68mm |
| Efficiency | 87% |
| Height | 39mm |
| Lead Free | Lead Free |
| Leakage Current | 500uA |
| Length | 222.2mm |
| Max Frequency | 63Hz |
| Min Frequency | 47Hz |
| Max Input Current | 1.1A |
| Max Input Voltage | 295V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 4A |
| Max Output Power | 96W |
| Max Output Voltage | 24V |
| Max Supply Voltage | 264V |
| Min Supply Voltage | 90V |
| Mount | Panel, Screw |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 4A |
| Output Power | 96W |
| Output Voltage | 24V |
| Radiation Hardening | No |
| Ratings | IP67 |
| Series | CLG-100 |
| Termination | Cable |
| Voltage - Output 1 | 24V |
| Width | 68mm |
| RoHS | Compliant |
