Technical Specifications
Mean Well LDD-300L technical specifications.
General
Current - Output 1
300mA
Efficiency
95%
Height
0.33inch
Length
0.89inch
Max Input Current
300mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
9.6W
Min Output Voltage
2V
Max Supply Current
300mA
Mount
Through Hole, PCB
Number of Outputs
1
Output Current
300mA
Output Power
9.6W
Series
LDD-L
Voltage - Output 1
32V
Width
0.39inch
Compliance
RoHS
Compliant
Datasheet
Mean Well LDD-300L Datasheet
Download the complete datasheet for Mean Well LDD-300L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

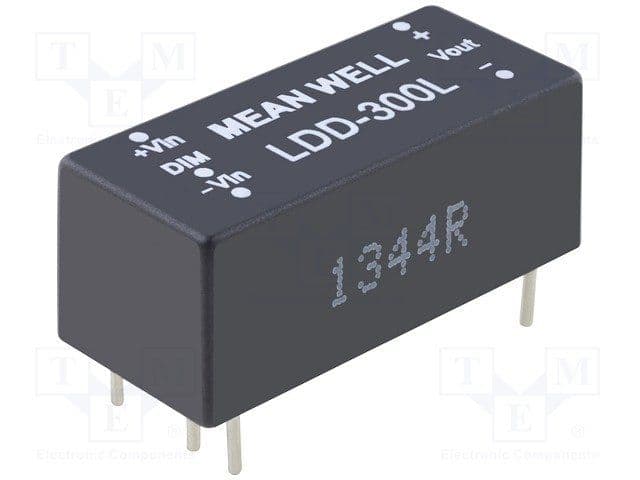

Product Images
