Technical Specifications
Mean Well PCD-40-1750B technical specifications.
General
Approvals
EN
Current - Output 1
1.75A
Efficiency
85%
Height
31.5mm
Length
128mm
Max Input Current
350mA
Max Operating Temperature
50°C
Min Operating Temperature
-30°C
Max Output Power
40.25W
Mount
Screw
Number of Outputs
1
Output Current
1.75A
Output Power
40.25W
Output Voltage
23V
Package Quantity
72
Packaging
Bulk
RoHS Compliant
Yes
Series
PCD-40
Voltage - Output 1
23V
Width
60mm
Compliance
RoHS
Compliant
Datasheet
Mean Well PCD-40-1750B Datasheet
Download the complete datasheet for Mean Well PCD-40-1750B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

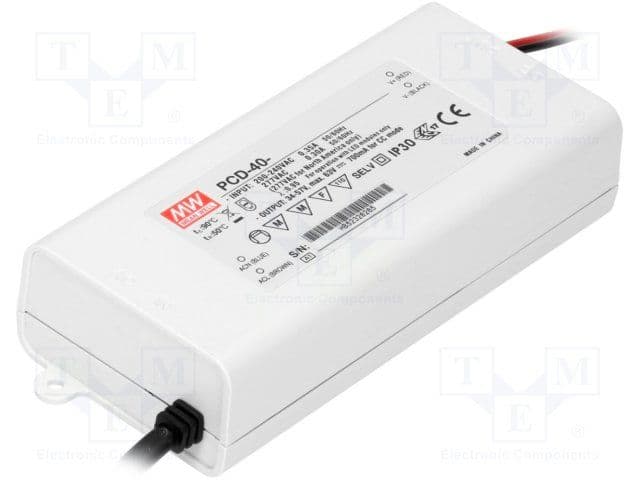

Product Images
