2-output, 35.88W AC-DC regulated power supply module for board mounting. Features dual 13.8V outputs with 1.7A and 900mA current capabilities, respectively. Achieves 84% efficiency and operates across a wide temperature range of -30°C to 70°C. This RoHS compliant module is UL, CE, TUV, and CB approved, with dimensions of 86.4mm x 59.6mm x 30mm.
Power35.88W
Quick Jump:
Technical Specifications
Mean Well PSC-35A-C technical specifications.
General
Approvals
UL, CE, TUV, CB
Color
Silver
Current - Output 1
1.7A
Current - Output 2
900mA
Efficiency
84%
Height
30mm
Length
86.4mm
Max Input Current
750mA
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Output Power
35.88W
Number of Outputs
2
Output Current
1.7A
Output Power
35.88W
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
PSC-35
Voltage - Output 1
13.8V
Voltage - Output 2
13.8V
Weight
5.114724oz
Width
59.6mm
Compliance
RoHS
Compliant
Datasheet
Mean Well PSC-35A-C Datasheet
Download the complete datasheet for Mean Well PSC-35A-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

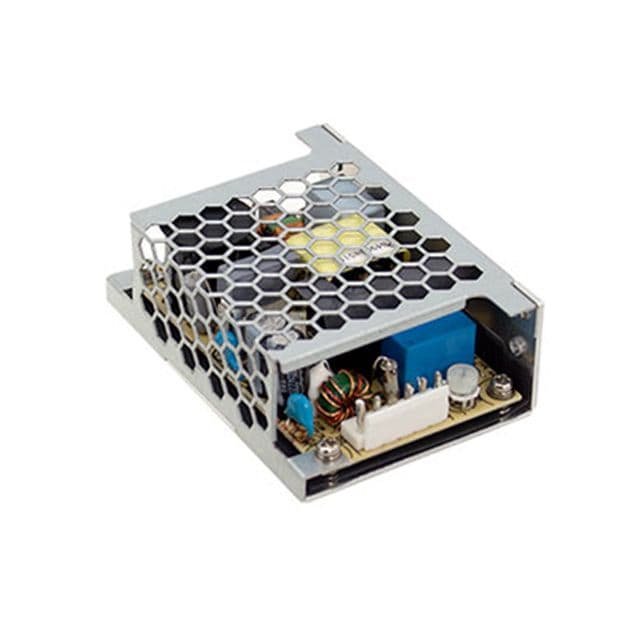

Product Images
