Technical Specifications
Mean Well SDM30-24S12 technical specifications.
General
Package/Case
Module
Current - Output 1
2.5A
Depth
50.8mm
Height
0.63inch
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
2inch
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Output Power
30W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
2.5A
Output Power
30W
Output Voltage
12V
Radiation Hardening
No
Series
SDM30
Voltage - Output 1
12V
Width
2inch
Compliance
RoHS
Compliant
Datasheet
Mean Well SDM30-24S12 Datasheet
Download the complete datasheet for Mean Well SDM30-24S12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

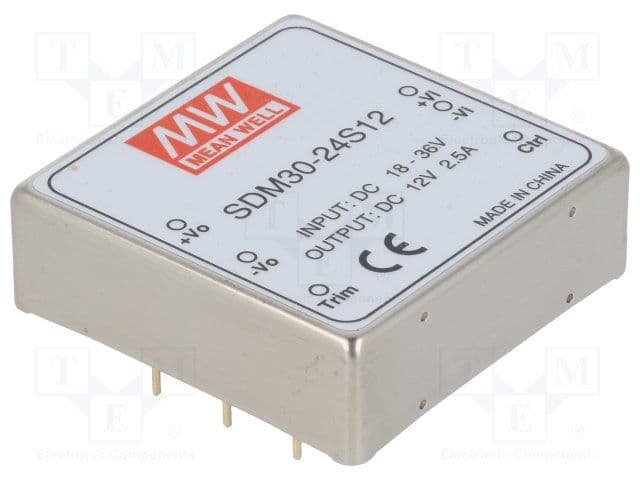

Product Images
