Microchip
24AA014-I/P
128 X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Frequency400kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24AA014-I/P technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
PDIP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Through Hole
Organization
128X8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24AA014-I/P Datasheet
Download the complete datasheet for Microchip 24AA014-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

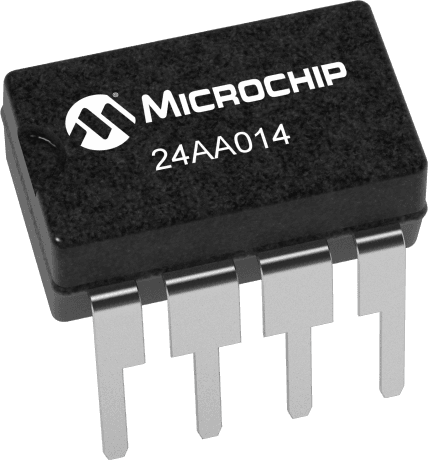

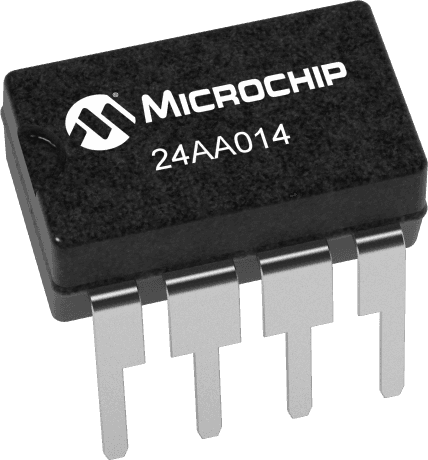

Product Images
