Microchip
24AA025T-I/MNY
256 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8
Frequency100kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA025T-I/MNY technical specifications.
General
Access Time
900ns
Access Time-Max
3500ns
Contact Plating
Gold
Density
2Kb
Frequency
100kHz
Interface
I2C, Serial
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
256X8
Package Quantity
3300
Packaging
Tape and Reel
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24AA025T-I/MNY Datasheet
Download the complete datasheet for Microchip 24AA025T-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

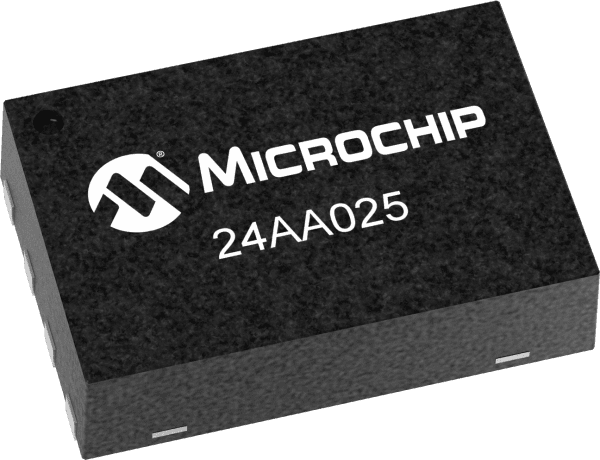

Product Images
