64Kb I2C/2-Wire Serial EEPROM memory, organized as 8K x 8, featuring a 400kHz maximum interface frequency. This through-hole mounted component operates from 1.7V to 5.5V, with a nominal supply voltage of 5.5V and a maximum supply current of 3mA. Access times range from 900ns to 3500ns, and it includes write protection. The PDIP package is RoHS compliant with tin, matte contact plating.
Frequency100kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24AA64-I/P technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 3500ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 64Kb |
| Frequency | 100kHz |
| Height | 3.3mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 9.4mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.7V |
| Mount | Through Hole |
| Operating Supply Voltage | 1.8V |
| Organization | 8KX8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 5.5V |
| Width | 6.35mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24AA64-I/P Datasheet
Download the complete datasheet for Microchip 24AA64-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

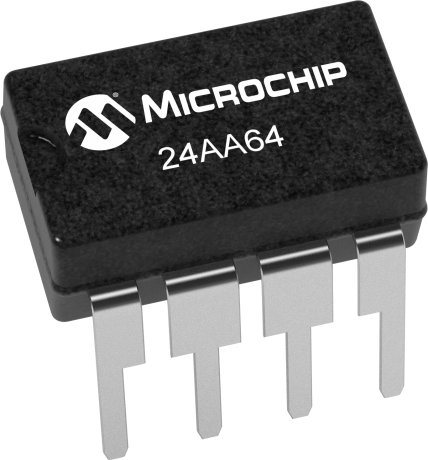

Product Images
