64Kb I2C/2-Wire Serial EEPROM, organized as 8K x 8, features a 100kHz maximum frequency and a 3500ns access time. This surface mount component, housed in a SOT-23 package with gold contact plating, operates from 1.7V to 5.5V with a typical 5V supply. It offers write protection and is RoHS compliant, suitable for applications within a -40°C to 85°C temperature range.
Frequency100kHz
PackageSOT-23
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA64FT-I/OT technical specifications.
General
Access Time
3500ns
Access Time-Max
3500ns
Package/Case
SOT-23
Contact Plating
Gold
Density
64Kb
Frequency
100kHz
Height
1.3mm
Interface
I2C, Serial
Length
3.1mm
Max Frequency
100kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Words
8000
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Width
1.8mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24AA64FT-I/OT Datasheet
Download the complete datasheet for Microchip 24AA64FT-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

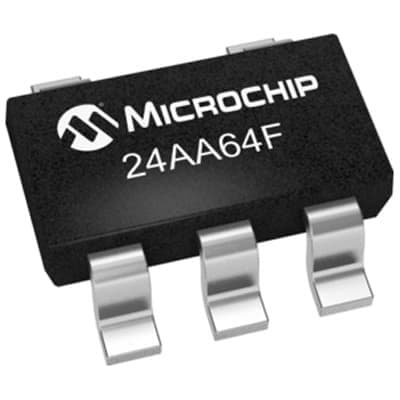

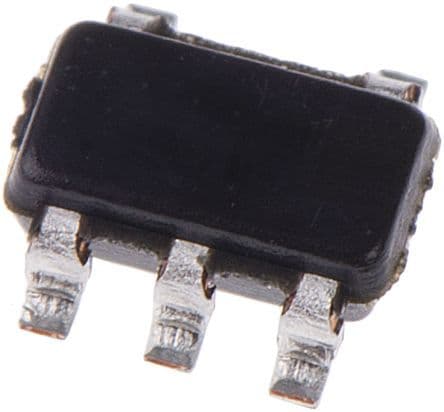

Product Images
