128-bit I2C/2-Wire Serial EEPROM for surface mount applications. Features a 16x8 organization and operates at up to 400kHz. Access time is 900ns, with a supply voltage range of 4.5V to 5.5V. Housed in a RoHS compliant TSSOP-8 package with tin/matte contact plating. Includes write protection and a maximum operating temperature of 85°C.
Frequency400kHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C00-I/ST technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
128b
Frequency
400kHz
Interface
I2C, 2-Wire, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
128b
Memory Type
EEPROM,
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
16X8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C00-I/ST Datasheet
Download the complete datasheet for Microchip 24C00-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

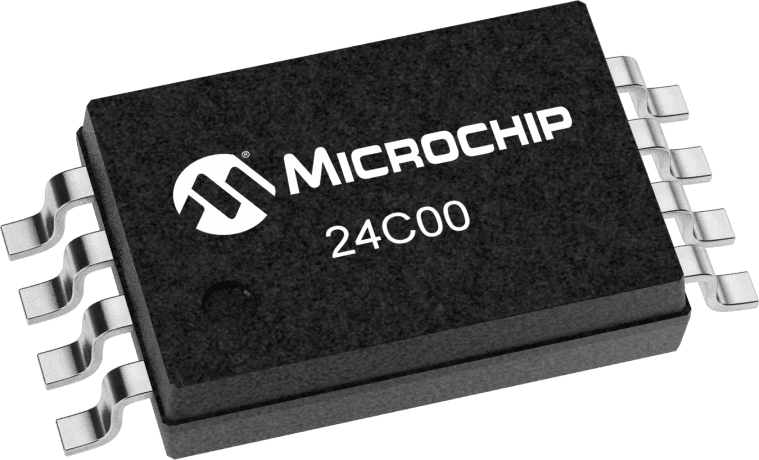

Product Images
