128-bit I2C/2-Wire serial EEPROM memory, organized as 16 words by 8 bits. Features a 400kHz maximum frequency and 900ns access time. Housed in a 5-pin SOT-23 surface mount package with tin, matte contact plating. Operates from a 4.5V to 5.5V supply voltage range, with a maximum operating temperature of 85°C. RoHS compliant with write protection capabilities.
Frequency400kHz
PackageSOT-23
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C00T-I/OT technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOT-23
Contact Plating
Tin, Matte
Density
128b
Frequency
400kHz
Height
1.3mm
Interface
I2C, 2-Wire, Serial
Lead Free
Lead Free
Length
3.1mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128b
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Words
16
Operating Supply Voltage
5V
Organization
16X8
Package Quantity
3000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Supply Voltage-Nom
5.5V
Width
1.8mm
Write Cycle Time-Max (tWC)
4ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C00T-I/OT Datasheet
Download the complete datasheet for Microchip 24C00T-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

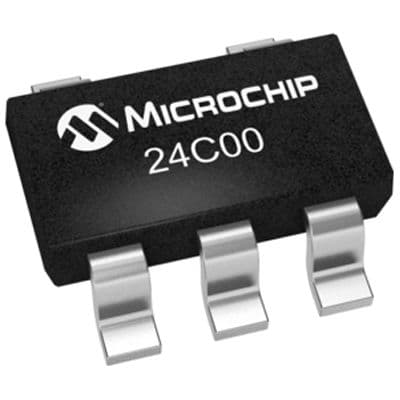

Product Images
