128-bit I²C™ serial EEPROM for surface mount applications. Features a 400 kHz maximum frequency and a 2-wire serial interface. Operates with a supply voltage range of 4.5V to 5.5V, with a maximum operating temperature of 85°C. Includes write protection and is RoHS compliant. Packaged in a TSSOP-8 format.
Frequency400kHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C00T-I/ST technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
128b
Frequency
400kHz
Interface
I2C, 2-Wire, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128b
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
16X8
Package Quantity
2500
Packaging
Tape and Reel
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C00T-I/ST Datasheet
Download the complete datasheet for Microchip 24C00T-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

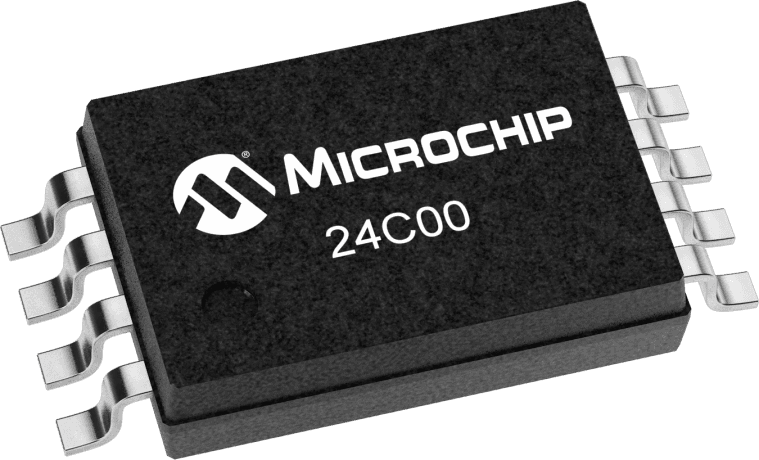

Product Images
