1Kb I2C/2-Wire Serial EEPROM with 128 x 8 organization. Features a 900ns access time and operates at up to 400kHz. This non-volatile memory component is housed in a through-hole PDIP package with tin-matte plating. Supports a 4.5V to 5.5V operating supply voltage range and includes write protection.
Frequency400kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24C01C-I/P technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
PDIP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
400kHz
Height
0.195inch
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
0.4inch
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
Non-Volatile, , EEPROM
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Words
128
Operating Supply Voltage
5V
Organization
128X8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
0.28inch
Write Cycle Time-Max (tWC)
1.5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C01C-I/P Datasheet
Download the complete datasheet for Microchip 24C01C-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

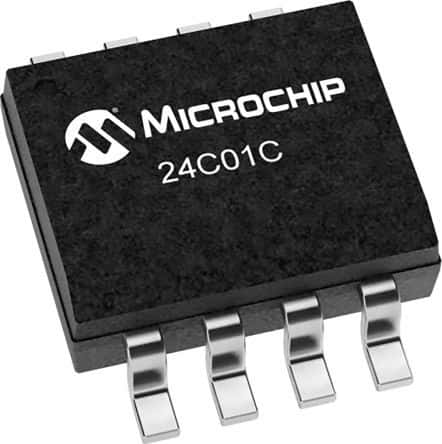

Product Images
