2Kb I2C/2-Wire Serial EEPROM, 256 x 8 organization, featuring a 900ns access time and a maximum operating frequency of 400kHz. This surface mount component operates from a 4.5V to 5.5V supply voltage, with a typical 5V operating voltage and 3mA supply current. Packaged in a RoHS compliant TSSOP-8, it offers write protection and is suitable for operation between -40°C and 85°C.
Frequency400kHz
PackageTSSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C02C-I/ST technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Density
2Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM,
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
256X8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C02C-I/ST Datasheet
Download the complete datasheet for Microchip 24C02C-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

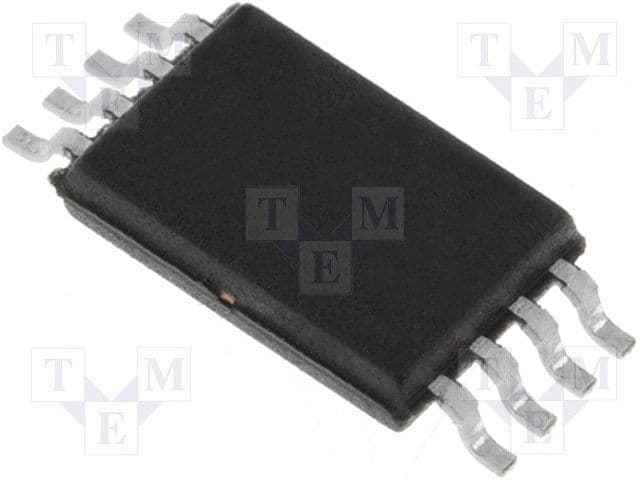

Product Images
