64Kb I2C/2-Wire Serial EEPROM, organized as 8K x 8, featuring a 400kHz maximum frequency and 900ns access time. This non-volatile memory component operates with a 4.5V to 6V supply voltage range and is housed in a lead-free SOIC surface-mount package. It supports write protection and is RoHS compliant.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C65/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
64Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
70°C
Memory Size
64Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
0°C
Max Supply Voltage
6V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
90
Packaging
Rail/Tube
Programming Voltage
5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
6V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C65/SM Datasheet
Download the complete datasheet for Microchip 24C65/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

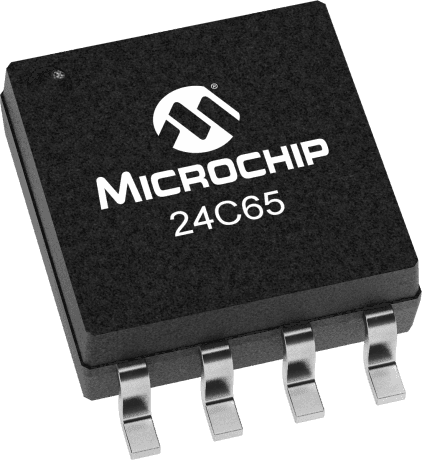

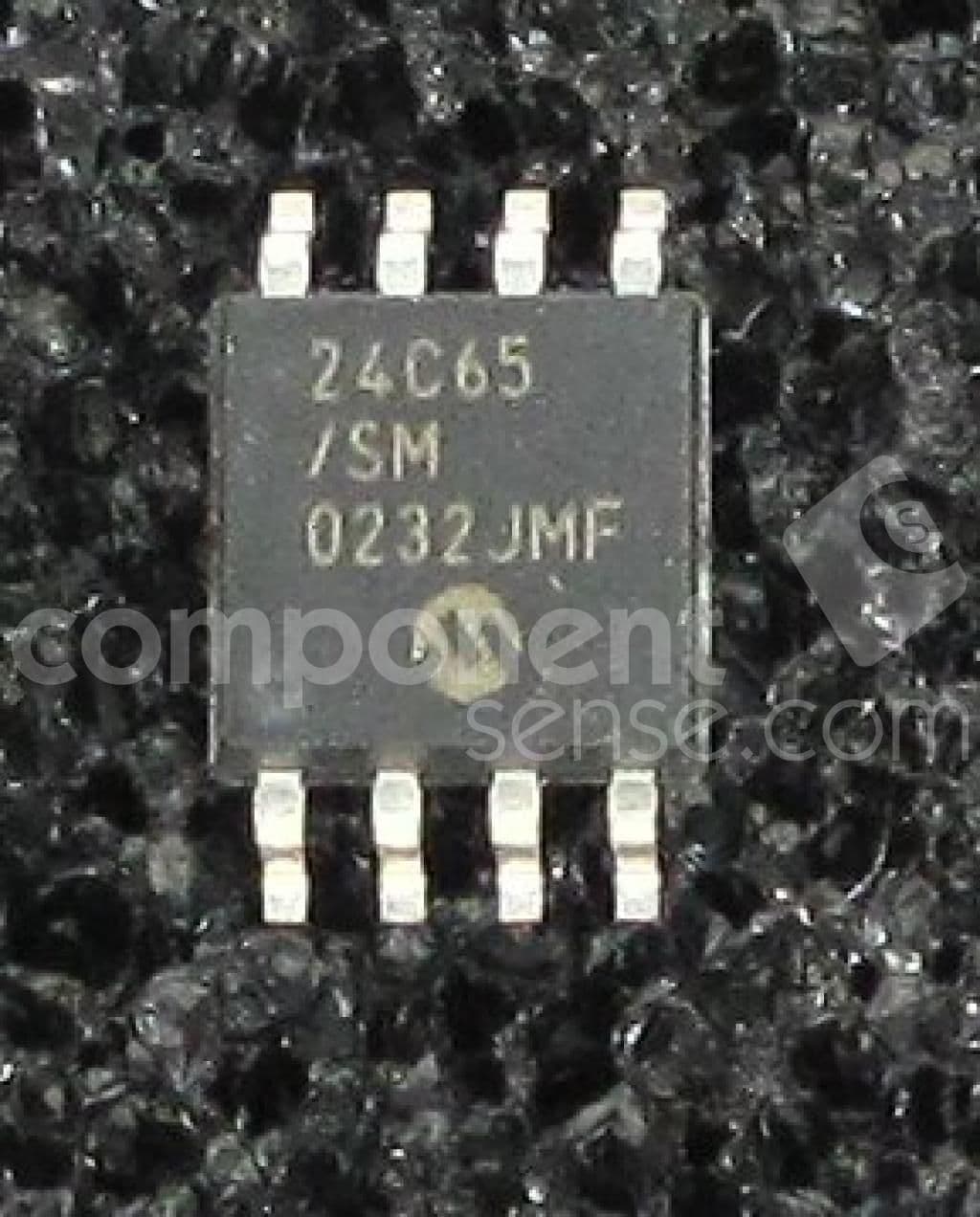

Product Images
