Technical Specifications
Microchip 24LC00T-I/MNY technical specifications.
General
Access Time-Max
900ns
Contact Plating
Gold
Density
128b
Frequency
400kHz
Interface
I2C, Serial
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
16X8
Packaging
Tape and Reel
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC00T-I/MNY Datasheet
Download the complete datasheet for Microchip 24LC00T-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

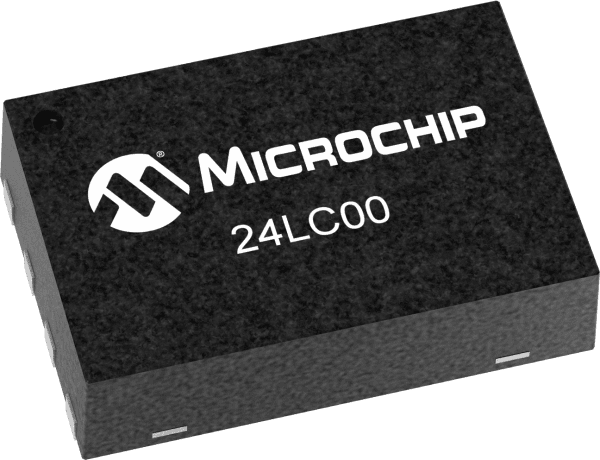

Product Images
