1Kb I2C/2-Wire Serial EEPROM, organized as 128 x 8 bits, offers a maximum operating frequency of 1MHz with an access time of 400ns. This surface mount device features a compact MSOP-8 package with tin-matte contact plating, operating from 2.5V to 5.5V. It supports write protection and is RoHS compliant, suitable for applications within a -40°C to 85°C temperature range.
Frequency1MHz
PackageMSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC014H-I/MS technical specifications.
General
Access Time
400ns
Access Time-Max
400ns
Package/Case
MSOP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
1MHz
Height
0.85mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Frequency
1MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
128
Operating Supply Voltage
5V
Organization
128X8
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Width
3mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC014H-I/MS Datasheet
Download the complete datasheet for Microchip 24LC014H-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

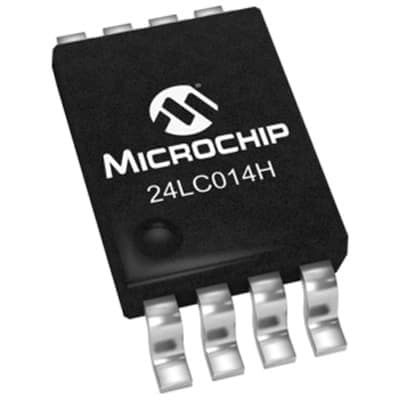

Product Images
