Microchip
24LC014HT-E/MNY
128 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, PLASTIC, TDFN-8
Frequency1MHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC014HT-E/MNY technical specifications.
General
Access Time
400ns
Access Time-Max
400ns
Contact Plating
Gold
Density
1Kb
Frequency
1MHz
Interface
I2C, Serial
Max Frequency
1MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
128X8
Package Quantity
3300
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC014HT-E/MNY Datasheet
Download the complete datasheet for Microchip 24LC014HT-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

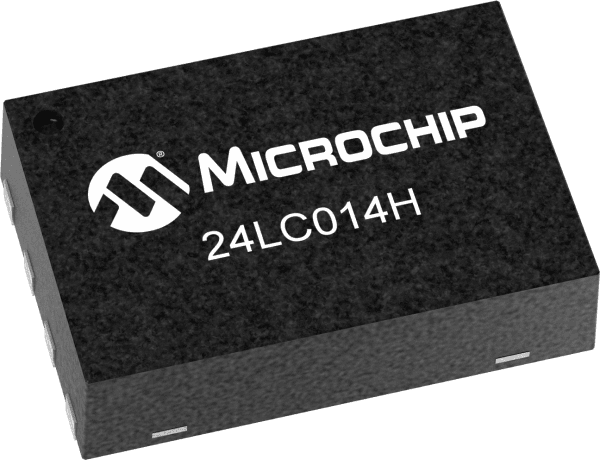

Product Images
