1Kb Serial EEPROM memory, organized as 128 x 8, features a 2-Wire/I2C interface with a maximum frequency of 400kHz. This through-hole component offers a fast access time of 900ns and operates across a supply voltage range of 2.5V to 5.5V. The PDIP package is tin-matte plated and designed for through-hole mounting. It supports write protection and is RoHS compliant.
Frequency400kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24LC01B/P technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 1Kb |
| Frequency | 400kHz |
| Height | 0.195inch |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 0.4inch |
| Max Frequency | 400kHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Organization | 128X8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Width | 0.28inch |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24LC01B/P Datasheet
Download the complete datasheet for Microchip 24LC01B/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

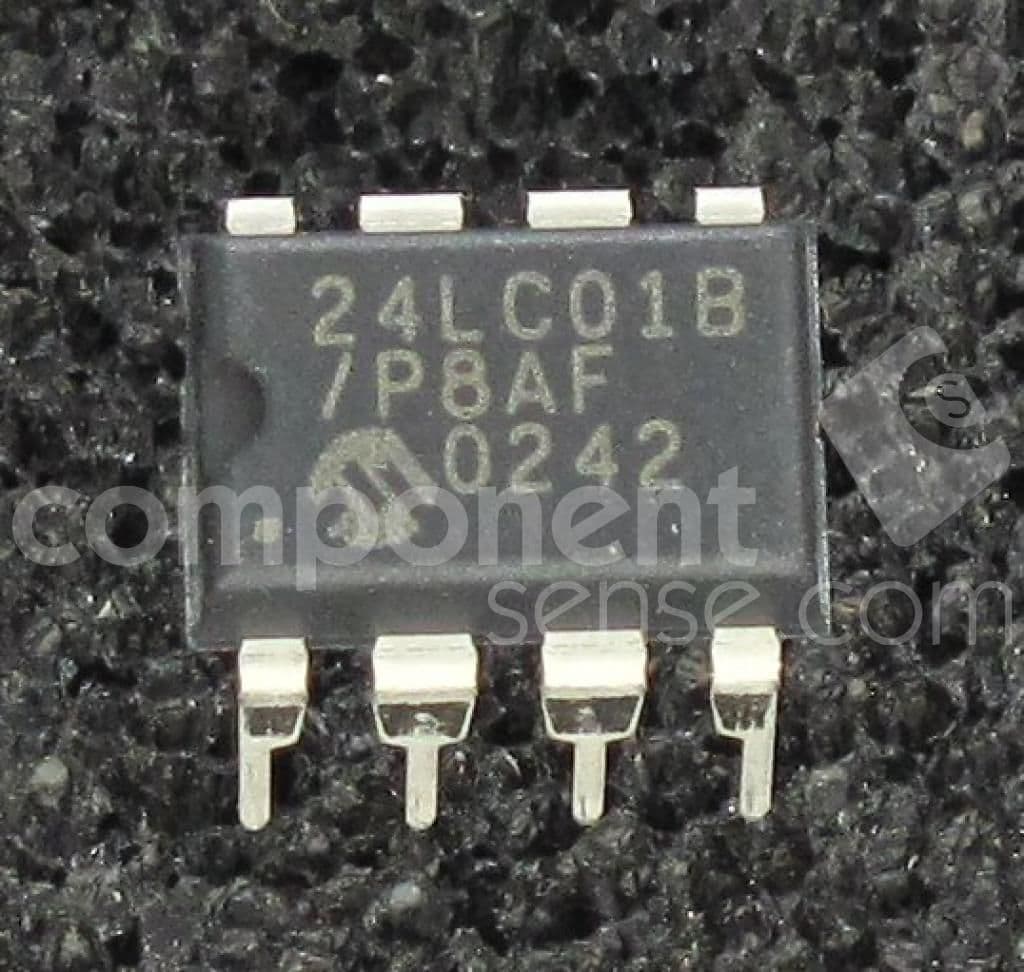

Product Images
