1Kb Serial EEPROM memory, organized as 128 x 8, features a 2-Wire/I2C interface with a maximum frequency of 400kHz. This non-volatile memory component operates with a supply voltage range of 2.5V to 5.5V and offers a fast access time of 900ns. Packaged in a compact SOT-23 surface-mount case, it is RoHS compliant and suitable for operation between -40°C and 85°C.
Frequency400kHz
PackageSOT-23
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC01BT-I/OT technical specifications.
General
Access Time
3500ns
Access Time-Max
900ns
Package/Case
SOT-23
Density
1Kb
Frequency
400kHz
Height
1.3mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3.1mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
128X8
Package Quantity
3000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
1.8mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC01BT-I/OT Datasheet
Download the complete datasheet for Microchip 24LC01BT-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

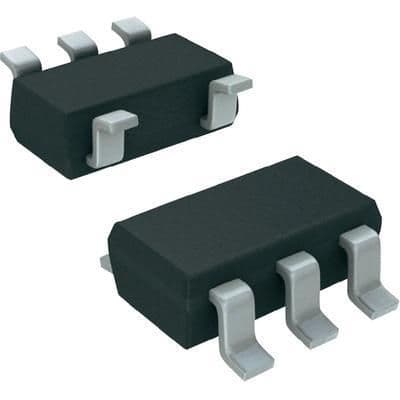

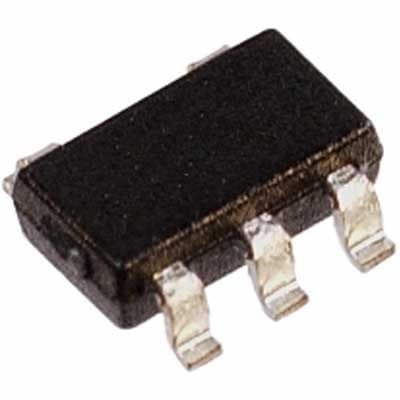

Product Images
