128Kb I2C/2-Wire Serial EEPROM, organized as 16K x 8, offers non-volatile memory storage. Features a 400kHz maximum frequency and a 900ns access time. This surface mount component is housed in a TSSOP package with tin, matte contact plating. Operating voltage ranges from 2.5V to 5.5V, with a maximum operating temperature of 125°C. Includes write protection and is RoHS compliant.
Frequency400kHz
PackageTSSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC128-E/ST technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
128Kb
Frequency
400kHz
Height
1.05mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
4.5mm
Max Frequency
400kHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
128Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
128
Organization
16KX8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
3.1mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC128-E/ST Datasheet
Download the complete datasheet for Microchip 24LC128-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

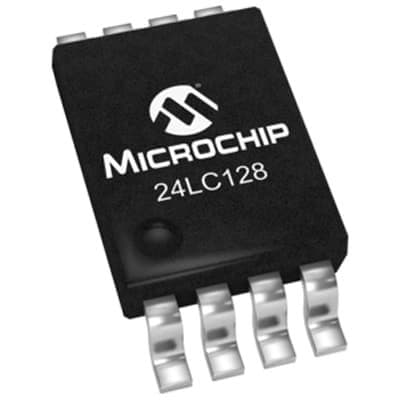

Product Images
