Microchip
24LC128T-E/MNY
16K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3 X 2 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8
Frequency400kHz
Current3mA
Quick Jump:
Technical Specifications
Microchip 24LC128T-E/MNY technical specifications.
General
Access Time-Max
900ns
Contact Plating
Tin, Matte
Density
128Kb
Frequency
400kHz
Interface
I2C, Serial
Max Frequency
400kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Organization
16KX8
Package Quantity
3300
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC128T-E/MNY Datasheet
Download the complete datasheet for Microchip 24LC128T-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

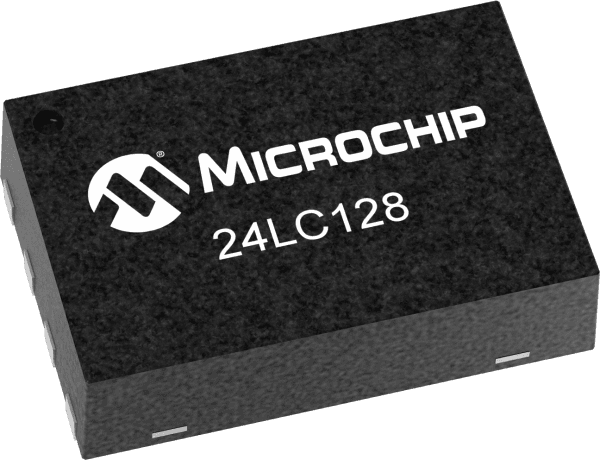

Product Images
