128Kb serial EEPROM memory, organized as 16K x 8, featuring an I2C/2-wire interface. Operates with a maximum frequency of 400kHz and an access time of 900ns. This surface mount component is housed in a SOIC package with tin-matte contact plating. It supports a supply voltage range of 2.5V to 5.5V and is RoHS compliant.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC128T-I/SM technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Density | 128Kb |
| Frequency | 400kHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 128Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Organization | 16KX8 |
| Package Quantity | 2100 |
| Packaging | Tape and Reel |
| Programming Voltage | 5.5V |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 5.5V |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24LC128T-I/SM Datasheet
Download the complete datasheet for Microchip 24LC128T-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

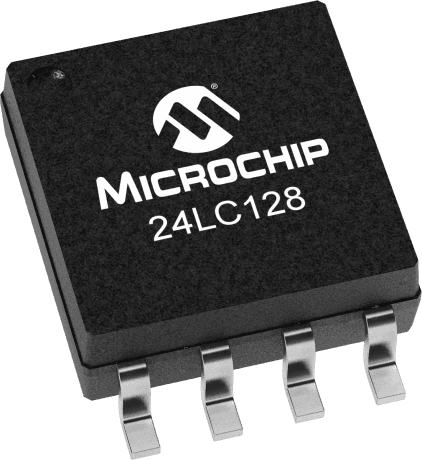

Product Images
