32Kb I2C/2-Wire Serial EEPROM, organized as 4K x 8, featuring a maximum operating frequency of 400kHz and a fast access time of 900ns. This surface mount component, housed in a SOIC package, operates with a supply voltage range of 2.5V to 5.5V. It offers write protection and is RoHS compliant, with a maximum supply current of 3mA.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC32A/SM technical specifications.
General
Access Time
5ms
Access Time-Max
900ns
Package/Case
SOIC
Density
32Kb
Frequency
400kHz
Height
1.98mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
5.26mm
Max Frequency
400kHz
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Operating Temperature
0°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
4000
Organization
4KX8
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
5.25mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC32A/SM Datasheet
Download the complete datasheet for Microchip 24LC32A/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

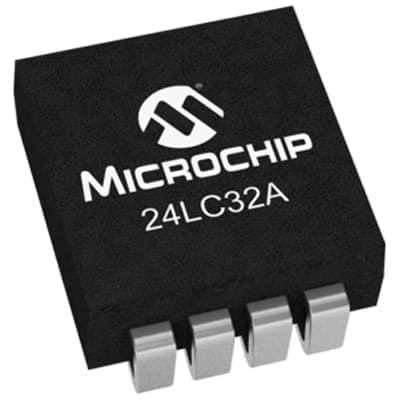

Product Images
