512Kb I2C/2-Wire Serial EEPROM, organized as 64K x 8, offers non-volatile memory storage. Features a maximum operating frequency of 400kHz and a fast access time of 900ns. Operates with a supply voltage range of 2.5V to 5.5V. Housed in a RoHS compliant, lead-free TSSOP package with tin matte contact plating.
Frequency400kHz
PackageTSSOP
Current5mA
Quick Jump:
Technical Specifications
Microchip 24LC512-I/ST technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
512Kb
Frequency
400kHz
Height
1.05mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
3.1mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
512Kb
Memory Type
Non-Volatile, , EEPROM
Min Supply Voltage
2.5V
Number of Words
64000
Operating Supply Voltage
5V
Organization
64KX8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
4.5mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC512-I/ST Datasheet
Download the complete datasheet for Microchip 24LC512-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

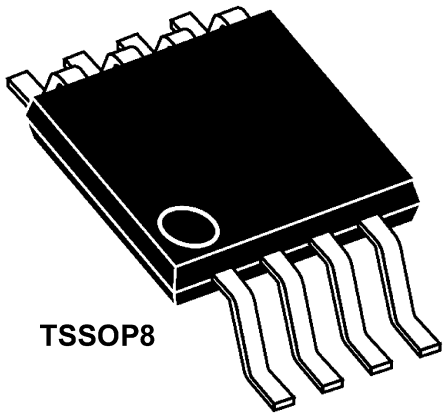

Product Images
